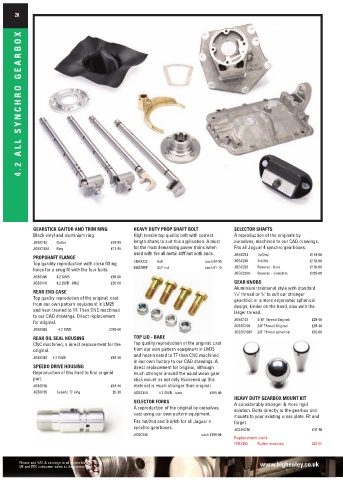

Page 26 - version

26

GEARBOX

ALL SYNCHRO

4.2

GEARSTICK GAITOR AND TRIM RING HEAVY DUTY PROP SHAFT BOLT SELECTOR SHAFTS
Black vinyl and aluminium ring. High tensile top quality bolt with correct A reproduction of the originals by
JGBC102 Gaito r £24-95 length shank to suit this application. A must ourselves, machined to our CAD drawings.
JGBC102A Ring £12-95 for the most demanding power trains when Fits all Jaguar 4 synchro gearboxes.
used with the all metal stiff nut both ends. JGBC234 1st/2nd £149-00
PROPSHAFT FLANGE
Top quaility reproduction with close fitting CRAX222 Bolt each £4-95 JGBC238 3rd/4th £152-00
holes for a snug fit with the four bolts. 038SNNF Stiff nut each £1-15 JGBC230 Reverse - bare £195-00
JGBC230A Reverse - complete £235-00
JGBC405 4.2 SWB £69-00
JGBC410 4.2 LWB - Mk2 £95-00 GEAR KNOBS
Aluminium traditional style with standard
REAR END CASE 5 /16" thread or /8" to suit our stronger
3
Top quality reprodution of the original, cast gearstick or a more ergonomic spherical
from our own pattern equipment in LM25 design, kinder on the hand, also with the
and heat-treated to TF. Then CNC machined larger thread.
to our CAD drawings. Direct replacement
for original. JGBC103 5/16" Thread Original £29-50
JCGBC103 3/8" Thread Original £29-50
JGBC403 4.2 SWB £295-00
JCGBC103R 3/8" Thread spherical £35-00
REAR OIL SEAL HOUSING TOP LID - BARE
CNC machined, a direct replacement for the Top quality reproduction of the original, cast
original. from our own pattern equipment in LM25
and heat-treated to TF then CNC machined
JGBC402 4.2 SWB £62-50
in our own factory to our CAD drawings. A
SPEEDO DRIVE HOUSING direct replacement for original, although
Reproduction of this hard to find original much stronger around the usual weak gear
part. stick mount as not only thickened up this
JGBS156 £49-50 material is much stronger than original.
JGBS155 Speedo ‘O’ ring £0-20 JGBS310 4.2 SWB - bare £495-00
HEAVY DUTY GEARBOX MOUNT KIT
SELECTOR FORKS A considerably stronger & more rigid
A reproduction of the original by ourselves, solution. Bolts directly to the gearbox and
cast using our own pattern equipment. mounts to your existing cross plate. Fit and
Fits 1st/2nd and 3rd/4th for all Jaguar 4 forget.
synchro gearboxes. JCGBS250 £47-50
JGBC240 each £199-00
Replacement parts
FGBS250 Rubber mounting £20-50

Please add VAT & carriage to all prices for www.bighealey.co.uk
UK and EEC consumer sales at the current rate
