Page 30 - version

30

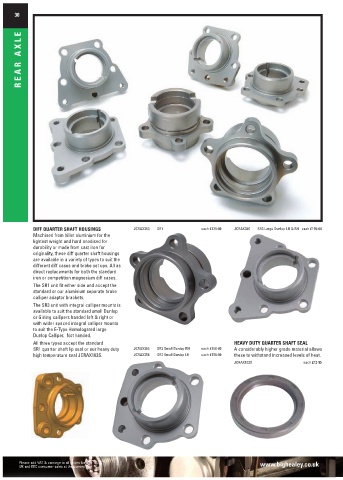

REAR AXLE

DIFF QUARTER SHAFT HOUSINGS JCRAX350 SR1 each £125-00 JCRAX360 SR3 Large Dunlop LH & RH each £195-00
Machined from billet aluminium for the
lightest weight and hard anodised for
durability or made from cast iron for
originality, these diff quarter shaft housings
are available in a variety of types to suit the
different diff cases and brake set ups. All as
direct replacements for both the standard
iron or competition magnesium diff cases.
The SR1 unit fit either side and accept the
standard or our aluminium separate brake
calliper adaptor brackets.
The SR3 unit with integral calliper mounts is
available to suit the standard small Dunlop
or Girling callipers handed left & right or
with wider spaced integral calliper mounts
to suit the E-Type Homologated large
Dunlop Calliper. Not handed.
All three types accept the standard HEAVY DUTY QUARTER SHAFT SEAL
SR1 quarter shaft lip seal or our heavy duty JCRAX355 SR3 Small Dunlop RH each £150-00 A considerably higher grade material allows
high temperature seal JCRAX102S. JCRAX356 SR3 Small Dunlop LH each £150-00 these to withstand increased levels of heat.
JCRAX102S each £12-95

Please add VAT & carriage to all prices for www.bighealey.co.uk
UK and EEC consumer sales at the current rate
