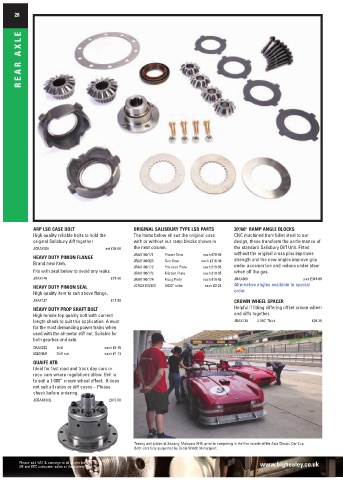

         REAR AXLE










































             ARP LSD CASE BOLT                    ORIGINAL SALISBURY TYPE LSD PARTS   30 /60 RAMP ANGLE BLOCKS
                                                                                          0
                                                                                        0
             High quality reliable bolts to hold the  The items below all suit the original case  CNC machined from billet steel to our
             original Salisbury diff together.    with or without our ramp blocks shown in  design, these transform the performance of
             JCRAX305                  set £36-00  the next column.                   the standard Salisbury Diff Unit. Fitted
                                                  JRAX100/171  Planet Gear      each £79-00  without the original cross pins improves
             HEAVY DUTY PINION FLANGE                                                 strength and the new angles improve grip
             Brand new item.                      JRAX100/323  Sun Gear          each £116-50  under acceleration and reduce under steer
             Fits with seal below to avoid any leaks.  JRAX100/172  Pre-load Plate   each £19-95  when off the gas.
                                                  JRAX100/173  Friction Plate    each £19-95
             JRAX140                     £79-50   JRAX100/174  4 Lug Plate       each £19-95  JRAX300          pair £349-69
             HEAVY DUTY PINION SEAL               JCRAX100/203  0.020” shim  each £3-25  Alternative angles available to special
             High quality item to suit above flange.                                  order.
             JRAX137                     £12-95                                       CROWN WHEEL SPACER
             HEAVY DUTY PROP SHAFT BOLT                                               Helpful if fitting differing offset crown wheel
             High tensile top quality bolt with correct                               and diffs together.
             length shank to suit this application. A must                            JRAX130    0.050" Thick     £39-25
             for the most demanding power trains when
             used with the all-metal stiff nut. Suitable for
             both gearbox and axle.
             CRAX222  Bolt             each £4-95
             038SNNF  Stiff nut        each £1-15
             QUAIFE ATB
             Ideal for fast road and track day cars or
             race cars where regulations allow. Unit is
             to suit a 1·000” crown wheel offset.  It does
             not suit all ratios or diff cases – Please
             check before ordering.
             JCRAX100Q                   £815-00








                                                  Testing and tuition at Sepang, Malaysia 2015, prior to competing in the five rounds of the Asia Classic Car Cup.
                                                  Both cars fully supported by Denis Welch Motorsport.

        Please add VAT & carriage to all prices for                                             www.bighealey.co.uk
        UK and EEC consumer sales at the current rate
