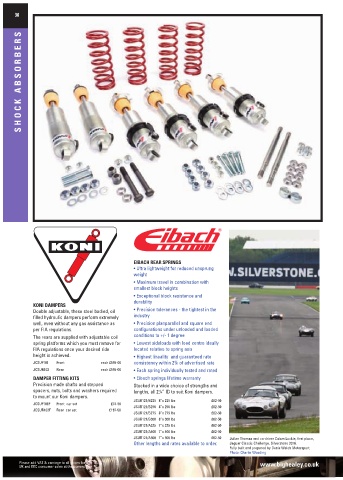

Page 36 - version

36 SHOCK ABSORBERS

EIBACH REAR SPRINGS
• Ultra lightweight for reduced unsprung
weight
• Maximum travel in combination with
smallest block heights
• Exceptional block resistance and
durability
KONI DAMPERS
Double adjustable, these steel bodied, oil • Precision tolerances - the tightest in the
filled hydraulic dampers perform extremely industry
well, even without any gas assistance as • Precision planparallel and square end
per FIA regulations. configurations under unloaded and loaded
The rears are supplied with adjustable coil conditions to +/- 1 degree
spring platforms which you must remove for • Lowest sideloads with load centre ideally
FIA regulations once your desired ride located relative to spring axis
height is achieved. • Highest lineality and guaranteed rate
JCSUF101 Front each £595-00 consistency within 2% of advertised rate
JCSUR102 Rear each £595-00 • Each spring individually tested and rated
DAMPER FITTING KITS • Eibach springs lifetime warranty
Precision made shafts and stepped Stocked in a wide choice of strengths and
spacers, nuts, bolts and washers required lengths, all 2 /4” ID to suit Koni dampers.
1
to mount our Koni dampers.
JSUR121/B225 8”x 225 lbs £62-50
JCSUF101F Front car set £74-50
JSUR121/B250 8”x 250 lbs £62-50
JCSUR102F Rear car set £197-50
JSUR121/B275 8”x 275 lbs £62-50
JSUR121/B300 8”x 300 lbs £62-50
JSUR121/A325 7”x 325 lbs £62-50
JSUR121/A400 7”x 400 lbs £62-50
JSUR121/A500 7”x 500 lbs £62-50 Julian Thomas and co-driver Calum Lockie, first place,
Other lengths and rates available to order. Jaguar Classic Challenge, Silverstone 2016.
Fully built and prepared by Denis Welch Motorsport.
Photo: Charlie Wooding
Please add VAT & carriage to all prices for www.bighealey.co.uk
UK and EEC consumer sales at the current rate
