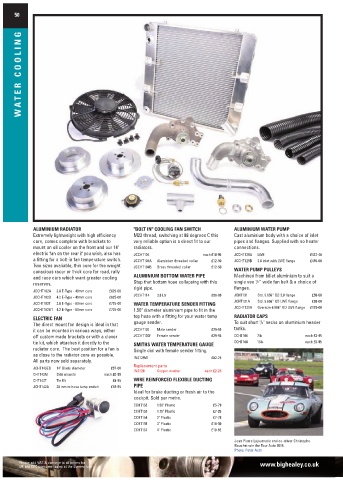

Page 50 - version

50

COOLING

TER

A
W

ALUMINIUM RADIATOR "BOLT IN" COOLING FAN SWITCH ALUMINIUM WATER PUMP
Extremely lightweight with high efficiency M22 thread, switching at 88 degrees C this Cast aluminium body with a choice of inlet
core, comes complete with brackets to very reliable option is a direct fit to our pipes and flanges. Supplied with no heater
mount an oil cooler on the front and our 14" radiators. connections.
electric fan on the rear if you wish, also has JCCHT104 each £18-95 JCCHT129A LWE £437-40
a fitting for a bolt-in fan temperature switch. JCCHT104A Aluminium threaded collar £12-50 JCCHT129B 3.8 inlet with LWE flange £495-00
Two sizes avaliable, thin core for the weight JCCHT104B Brass threaded collar £12-50
conscious racer or thick core for road, rally WATER PUMP PULLEYS
and race cars which want greater cooling ALUMINIUM BOTTOM WATER PIPE Machined from billet aluminium to suit a
1
reserves. Stop that bottom hose collapsing with this single vee /2” wide fan belt & a choice of
flanges.
rigid pipe.
JCCHT102A 3.8 E-Type - 40mm core £625-00
JCCHT102B 4.2 E-Type - 40mm core £625-00 JCCHT114 3.8 Ltr £90-00 JCHT131 Std. 5.656” OD 3.8 flange £98-00
JCCHT102T 3.8 E-Type - 60mm core £725-00 WATER TEMPERATURE SENDER FITTING JCHT131A Std. 5.656” OD LWE flange £98-00
JCCHT102BT 4.2 E-Type - 60mm core £725-00 1.50" diameter aluminium pipe to fit in the JCCHT131A Oversize 6.906” OD LWE flange £125-00
top hose with a fitting for your water temp RADIATOR CAPS
ELECTRIC FAN
3
The direct mount fan design is ideal in that gauge sender. To suit short /4" necks on aluminium header
it can be mounted in various ways, either JCCHT120 Male sender £29-95 tanks.
off custom made brackets or with a clever JCCHT120F Female sender £29-95 CCHT106 7lb each £3-95
tie kit, which attaches it directly to the SMITHS WATER TEMPERATURE GAUGE CCHT108 15lb each £3-95
radiator core. The best position for a fan is Single dial with female sender fitting.
as close to the radiator core as possible.
All parts now sold separately. INS129W £82-25
Replacement parts
JCHT143EB 14" Blade diameter £97-00 INS128 Copper washer each £2-25
CHT143M Side mounts each £0-99
CHT143T Tie Kit £8-95 WIRE REINFORCED FLEXIBLE DUCTING
JCHT142A 38 mm in-hose temp switch £59-95 PIPE
Ideal for brake ducting or fresh air to the
cockpit. Sold per metre.
CCHT152 1.50" Plastic £5-79
CCHT153 1.75" Plastic £7-25
CCHT154 2" Plastic £7-78
CCHT155 3" Plastic £10-50
CCHT157 4" Plastic £10-92
Jean Pierre Lajournade and co-driver Christophe
Bouchet win the Tour Auto 2015.
Photo: Peter Auto

Please add VAT & carriage to all prices for www.bighealey.co.uk
UK and EEC consumer sales at the current rate
