MSD Digital 6AL Ignition Box & loom

Product Code: JCELI225

£389.71
+ VAT (If applicable)

Now Mandatory for Masters Racing, Gentleman drivers and Pre’66 Touring cars.

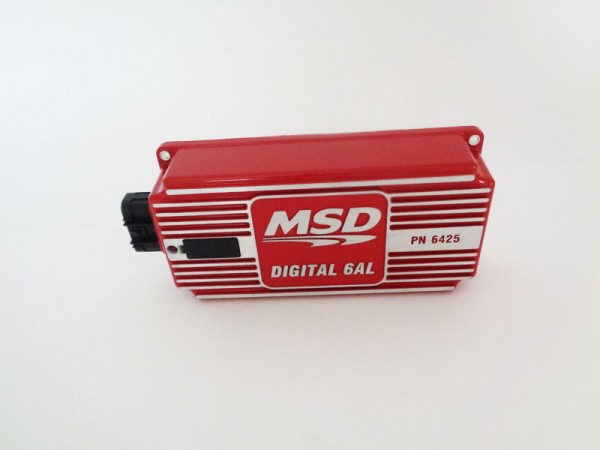

The MSD 6AL Ignition Control set the standards that other ignitions strive to reach.  The wiring of the Digital 6AL is routed out of one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev limiter of the 6AL is located right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments.

Inside the Digital 6AL you will find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current. In fact, the Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing.  Increased output combined with MSD’s proven multiple spark series is a win-win situation!

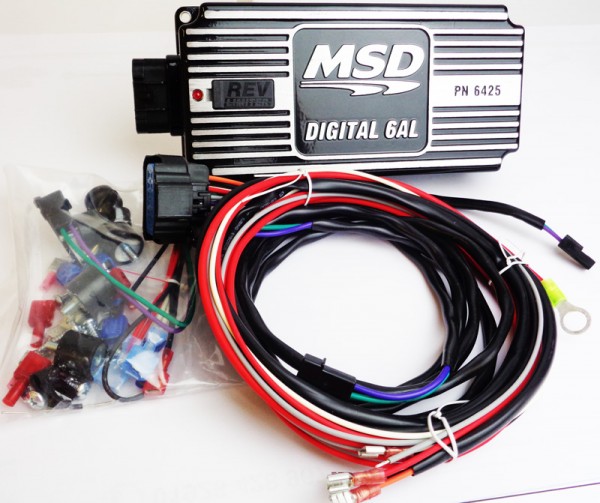

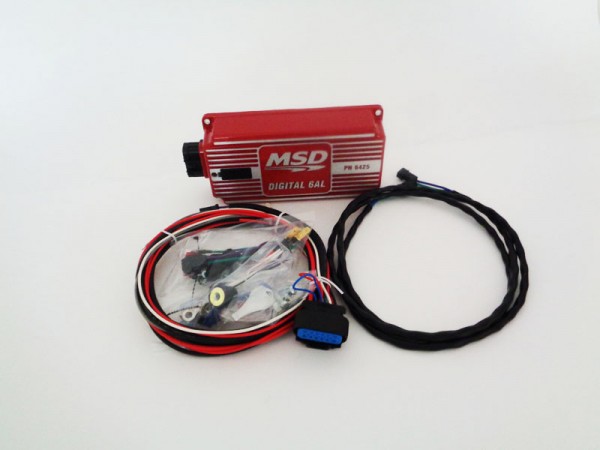

The Digital 6AL is supplied with the wiring harness and the components that you will need for installation. The 6AL is also supplied with vibration mounts. Compatible on 4, 6 or 8-cylinder engines with 12-volt, negative ground electrical systems. They will accept trigger inputs from breaker points, amplifiers and magnetic pickups.

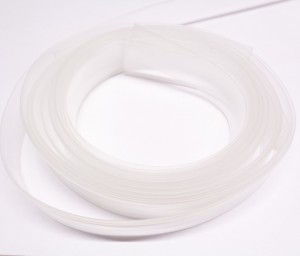

Some regulations require clear heat shrink to be used, this is available to be purchased separatley. WCB181DC.

Features:

High output with 530 volts and 135mJ of spark energy

Efficient components use less current to produce more power

Set an rpm limit with two rotary dials in 100 rpm increments

Built-in LED for system checks, All wires exit through a locked, sealed connector, Compatible with 4, 6 or 8-cylinder engines



Technical Details:

Current Draw     1.1 Amp per 1,000 RPM

Emission Code   1

Features              Rev Limiter

Primary Voltage                520-540 Volts

Max RPM Range               11,000 RPM

Secondary Voltage          45,000 Volts

Spark Energy                      135-145 mJ per spark

Spark Series Duration     20 degree Crankshaft Rotation

Voltage Required             12-15 Volts, 7 Volt Start

Weight and Size                1.7 lbs., 8"L x 4"W x 1.825"H
