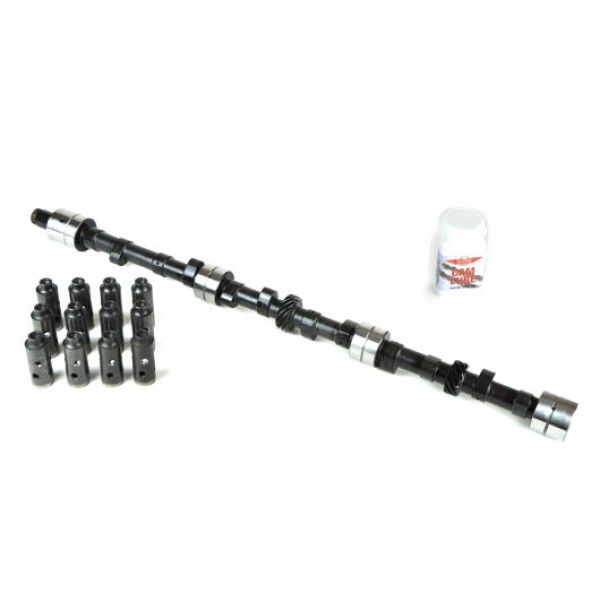

In 2003 we totally revised not only the way we sell our camshafts but also the design and manufacturing. We now only sell camshafts packaged complete with followers and cam lube for assembly. We offer the choice of our bucket or standard type cam followers, please specify when ordering (pushrods not included).

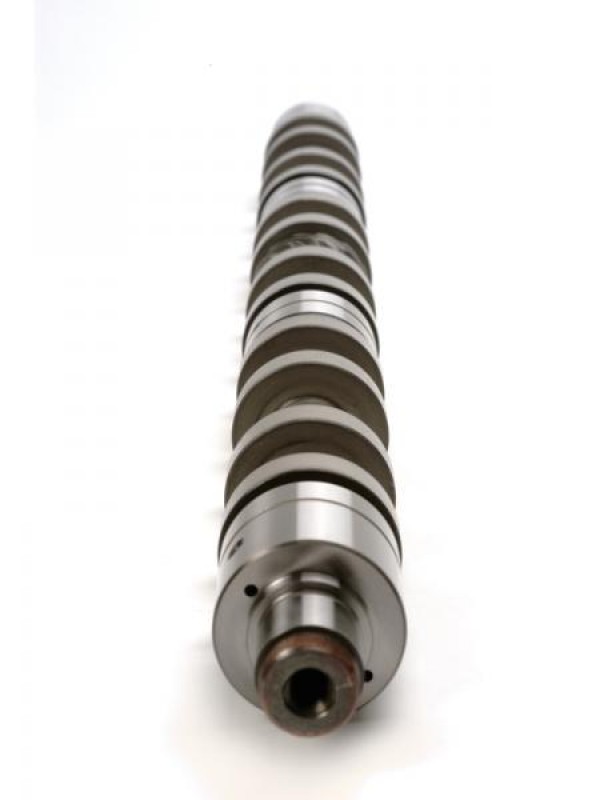

There are considerable differences between new and reground cams so the decision should be taken carefully. The relative positioning and relationship between cam and follower is unique to our design in order to promote follower rotation at low rpm. These camshafts are also gun drilled through their entire length, with oil feed holes in each lobe base circle and the oil pump drive gear, thus giving a positive pressure fed oil feed to every hard working part of the cam and follower. The material used is the best available for long life and is fully heat-treated with the lobes made as large as possible to reduce wear. Also now available as a Billet Blank for final profiling and heat treatment to your specification, by ourselves or your cam grinder.

PROFILES

- DWR 3 profile is high lift with 320 degrees duration (requires valve pockets). This profile is very similar to the DWR 2 with a little extra duration and overlap. Ideal for race cars and works well with triple Webers.

PLEASE NOTE: 3D Model shows camshaft only.
